Early Warning System

MODEL NO: WINEWS321

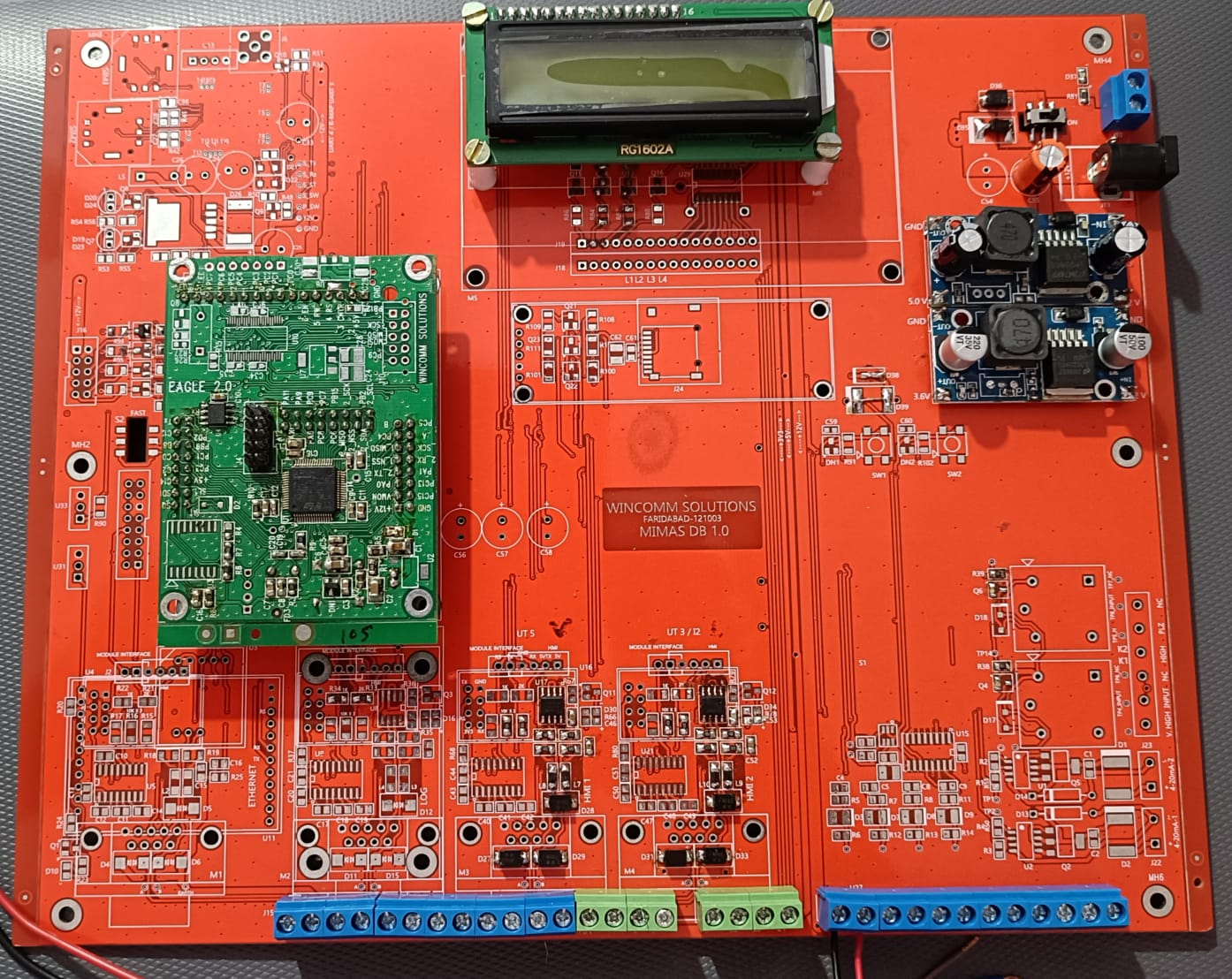

DATA LOGGER
Storage capacity 32 GB, more than 100,00,000 data points.
Sampling frequency programmable by 0.1Sec to 24 Hr.
Analog Sensor Channels : 5 Nos.
General I/O channel :5 nos.
Operating Temperature range: -40 °C to 60 °C
humidity: 10-95%
Power supply: 10 to 36 V DC facility to connect additional power source to system
Inbuilt Power supply for sensor.
12V (1.2 AH) internal battery.
Communication Interfaces: Ethernet, RS 232, USB, Web Server
Integrated Battery Health Monitoring System
Peak Power 10Watt
Scalable no of channels/sensor input
Inbuilt power supply output for Sensors (12 Volt)
Real time clock: Temperature compensated resolution with 100 μs
Sampling Resolution with Microchip 18 Bit ADC
LCD display 16X2 Alphanumeric with back light
Display functions – channel data, alarms and system status
Activity LEDs Indicators
Key pad for function execution.
Digital Channel with Isolation Inputs: 1 Nos. SDI12 port
Compatible with GOES/METEOSAT/INSAT H-2221-V2 for transmission via LAN port
1 Nos. RS485 port
1 Nos. RS485 port

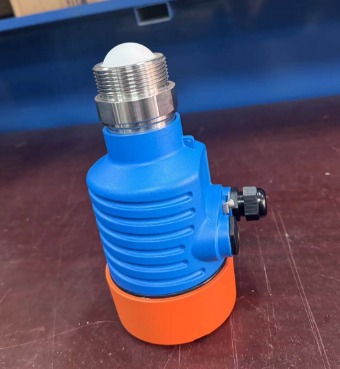

Radar Type Water Level Sensor WL-30 (50m)

Applicable medium: liquid, especially with pressure and volatile liquid
Should use: crude oil, light oil level measurement, aluminum hydroxide level measurement, raw coal, limestone position measurement, coke material level measurement
Explosion-proof compliant: Exd IIC T6 Gb
Protection grade: IP67Measuring range: 50 m
Day line, horn antenna
Frequency : 26GHz
Bream angle 150
Process temp (0 ~ 100 ℃)Accuracy: + / – 2 mm
Resolutions 1 mm
Process pressure: 1 to 3 bar)
Signal output: (4 ~ 20 mA)
The scene shows: four Key LCD programmable
Language :English
Resolution : 1mm
Electricity source, two wire (DC24V/12V)

Radar Type Velocity Sensor WL-35  (0-15 m/s)
Applicable medium: liquid, especially with pressure and volatile liquid
Should use: crude oil, light oil level measurement, aluminium hydroxide flow measurement, raw coal, limestone position measurement, coke material flow measurement
Explosion-proof compliant: Exd IIC T6 Gb
Protection grade: IP67
Frequency : 26GHz
Bream angle 120 to 300
Accuracy: + / – 1 mm/s
Resolutions 1 mm/s
Operating temperature -40 to 600 C
Signal output: (4 ~ 20 mA)
Language :English
Electricity source, two wire (DC24V/12V)
Power Consumption : 1.2W

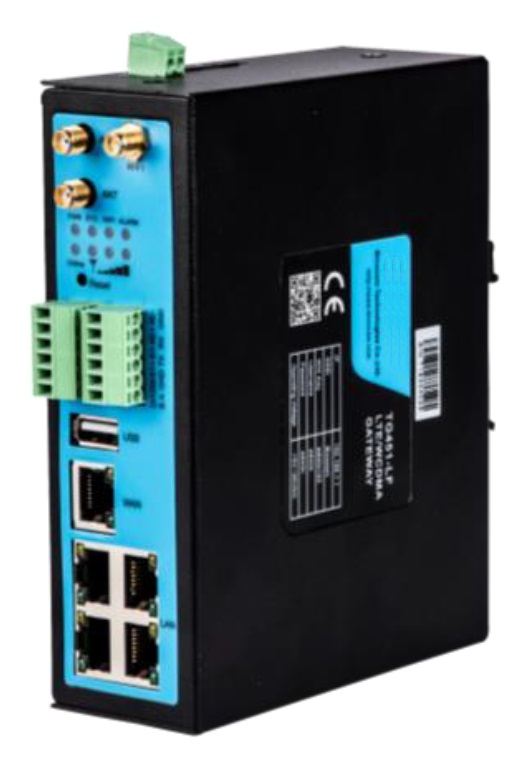

GPRS/3G/4G Modem

Dual Sim (Auto Failover)
Fast and Reliable communication over 2G/3G/4G Networks
Supports SMS
Compatible with Airtel, BSNL, JIO etc
Ethernet/RS485/USB Interface with Datalogger connectivity
High Gain Antenna for remote locations
Dial-up Facility
